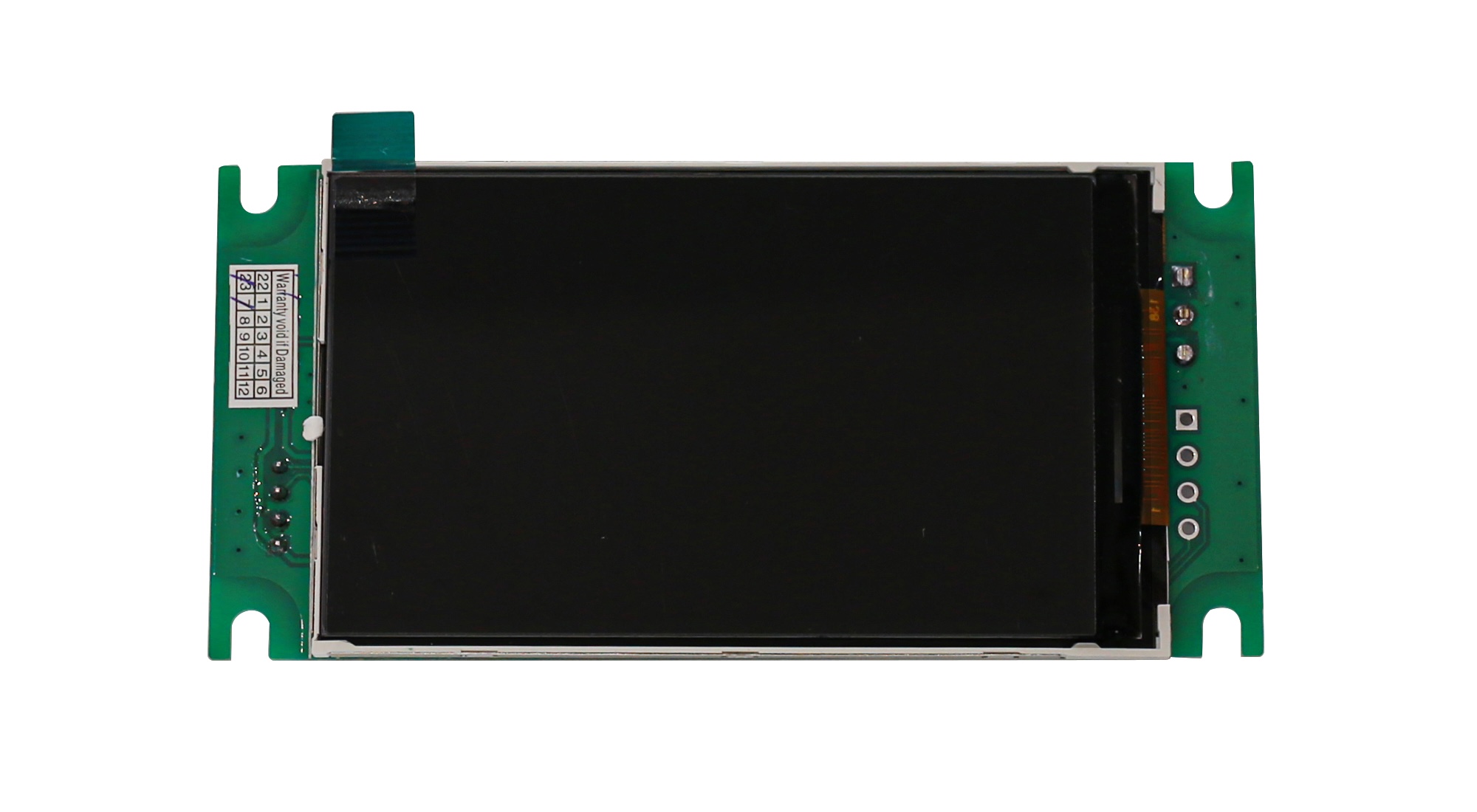

| LCD Type | TFT |
| Operating Voltage | 8~27V DC |
| Color Depth | 65,535 |
| Screen Diameter | 3.2” inch |
| View Area Dimensions | 70 x 42 mm [ 2.75 x 1.65 ] inch |
| Screen Resolution (px) | 400 x 240 |
| Dot Pitch | 0.176 x 0.176 (mm) |
| Panel Dimensions (L x W x D) | 100 x 60 x 13 mm [3.93 x 2.36 x 0.511] inch |
| Mounting Dimensions ( Ø, L x W ) | 4 x D4 85 x 55 mm |
| Operating Temperature | -10°C to 60°C |

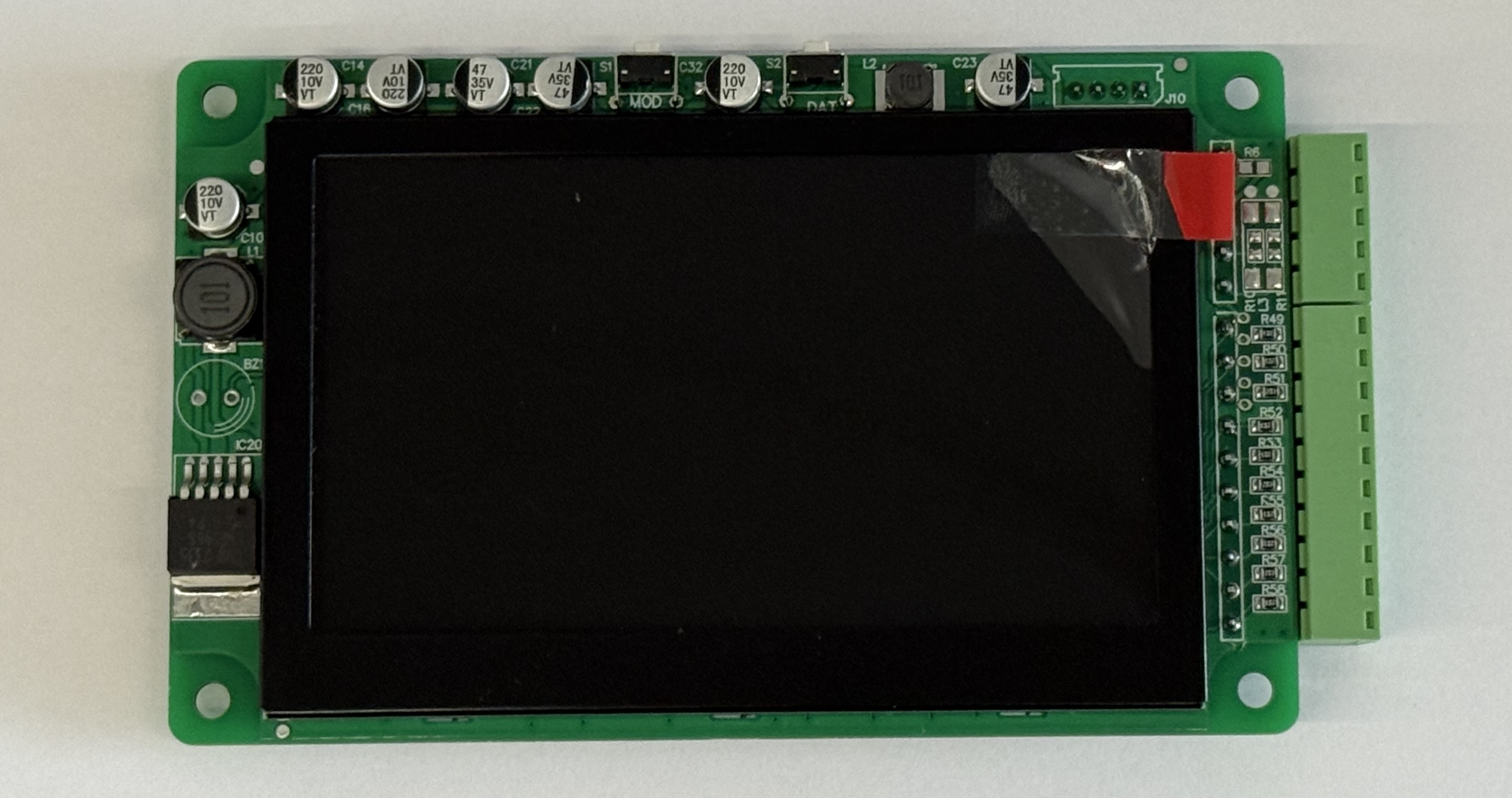

| LCD Type | TFT |
| Operating Voltage | 8~27V DC |
| Color Depth | 65,535 |
| Screen Diameter | 4.3” inch |
| View Area Dimensions | 96 x 54 mm [ 3.78 x 2.12 ] inch |
| Screen Resolution (px) | 480 x 272 |
| Dot Pitch | 0.198 x 0.198 (mm) |
| Panel Dimensions (L x W x D) | 128 x 80 x 19 mm [5.03 x 3.14 x 0.74] inch |
| Mounting Dimensions ( Ø, L x W ) | 4 x D4 120 x 70 mm |
| Operating Temperature | -10°C to 60°C |

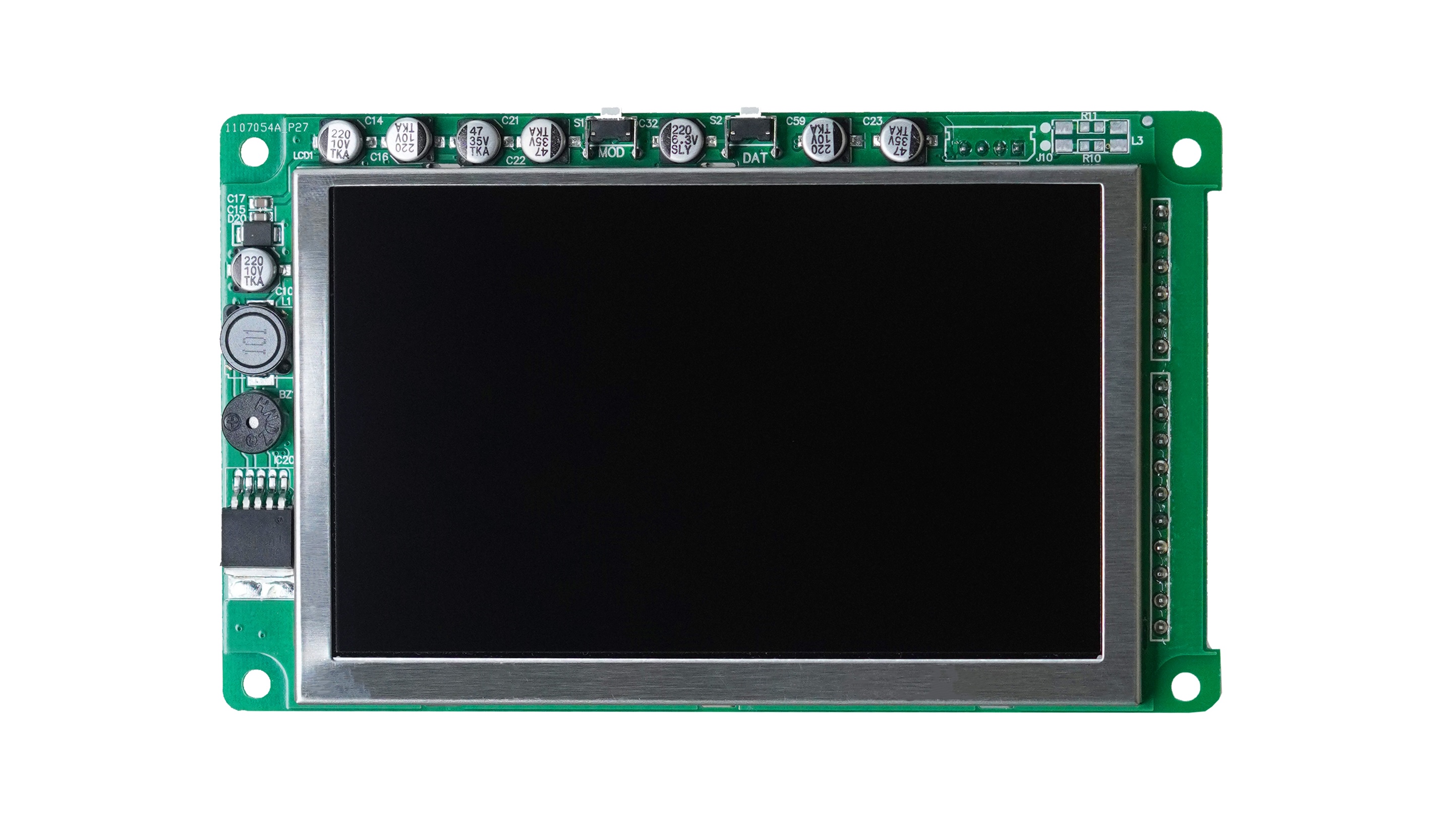

| LCD Type | TFT |
| Operating Voltage | 8~27V DC |
| Color Depth | 65,535 |
| Screen Diameter | 5” inch |
| View Area Dimensions | 110 x 67 mm [ 4.33 x 2.63 ] inch |
| Screen Resolution (px) | 800 x 480 |
| Dot Pitch | 0.136 x 0.136 (mm) |
| Panel Dimensions (L x W x D) | 145 x 85 x 19 mm [5.7 x 3.34 x 0.74] inch |
| Mounting Dimensions ( Ø, L x W ) | 4 x D4 135 x 87 mm |
| Operating Temperature | -10°C to 60°C |

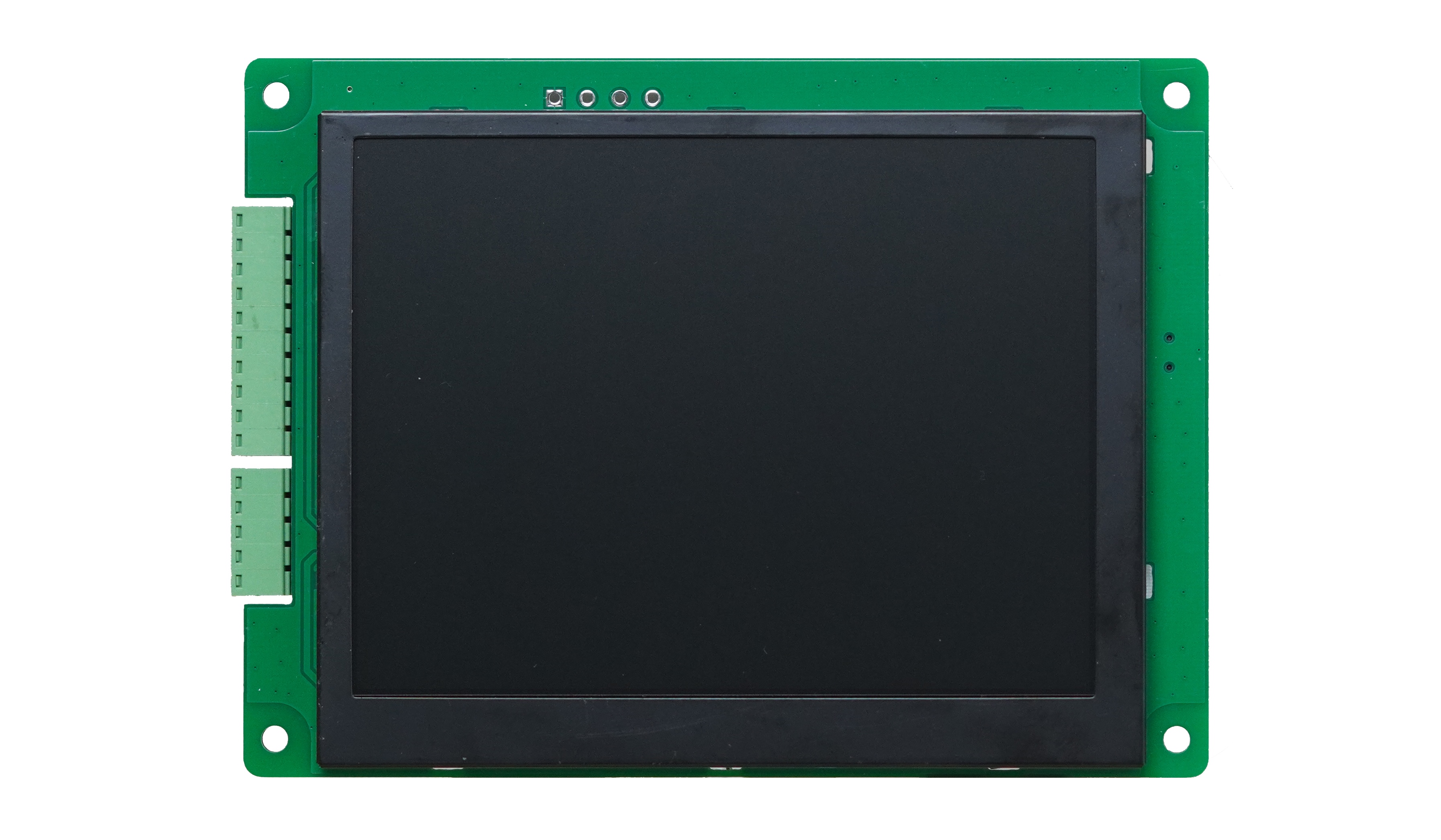

| LCD Type | TFT |
| Operating Voltage | 8~27V DC |
| Color Depth | 65,535 |
| Screen Diameter | 5.6” inch |
| View Area Dimensions | 112 x 84 mm [ 4.4 x 3.3 ] inch |
| Screen Resolution (px) | 640 x 480 |
| Dot Pitch | 0.176 x 0.176 (mm) |
| Panel Dimensions (L x W x D) | 150 x 110 x 19 mm [5.9 x 4.33 x 0.74] inch |
| Mounting Dimensions ( Ø, L x W ) | 4 x D4 140 x 100 mm |
| Operating Temperature | -10°C to 60°C |

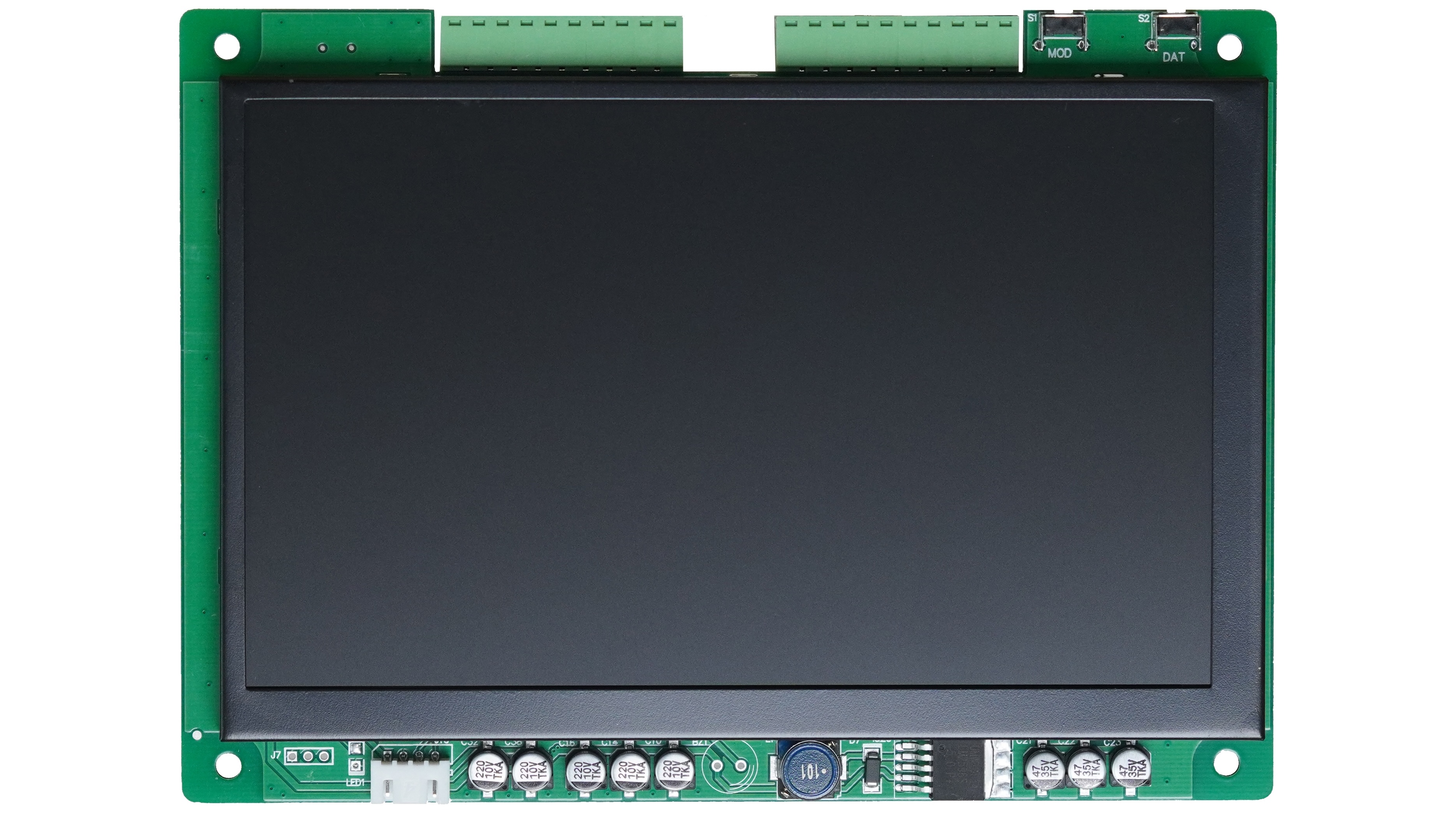

| LCD Type | TFT |
| Operating Voltage | 8~27V DC |
| Color Depth | 65,535 |
| Screen Diameter | 7” inch |
| View Area Dimensions | 152 x 91 mm [ 5.99 x 3.6 ] inch |
| Screen Resolution (px) | 800 x 480 |
| Dot Pitch | 0.19 x 0.19 (mm) |
| Panel Dimensions (L x W x D) | 175 x 125 x 20 mm [6.88 x 4.92 x 0.78] inch |
| Mounting Dimensions ( Ø, L x W ) | 4 x D4 160 x 115 mm |
| Operating Temperature | -10°C to 60°C |

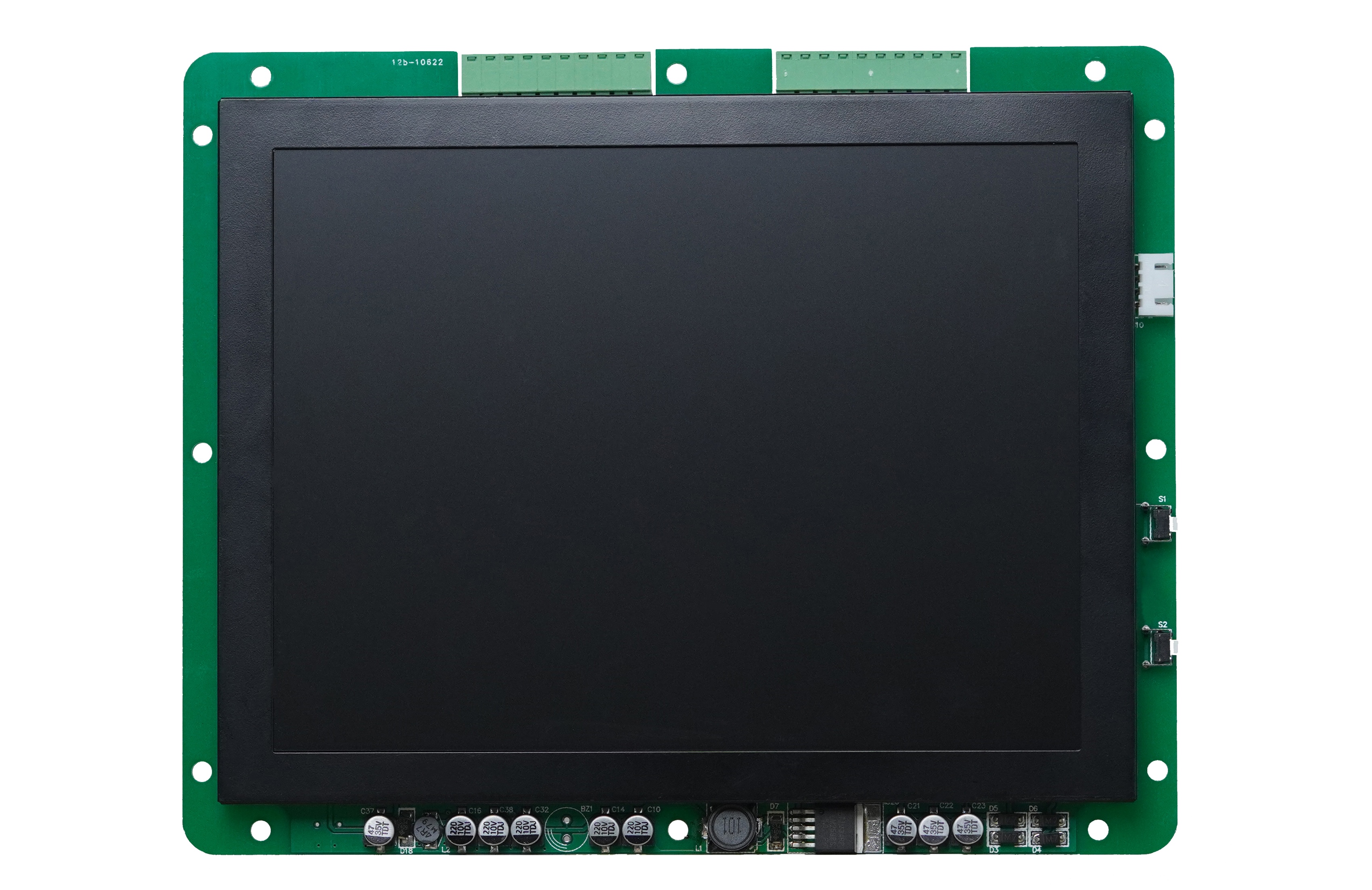

| LCD Type | TFT |
| Operating Voltage | 8~27V DC |
| Color Depth | 65,535 |
| Screen Diameter | 8” inch |
| View Area Dimensions | 160 x 120 mm [ 6.3 x 4.72 ] inch |
| Screen Resolution (px) | 800 x 600 |
| Dot Pitch | 0.2 x 0.2 (mm) |
| Panel Dimensions (L x W x D) | 202 x 162 x 20 mm [7.95 x 6.37 x 0.78] inch |
| Mounting Dimensions ( Ø, L x W ) | 4 x D4 194 x 130 mm |
| Operating Temperature | -10°C to 60°C |

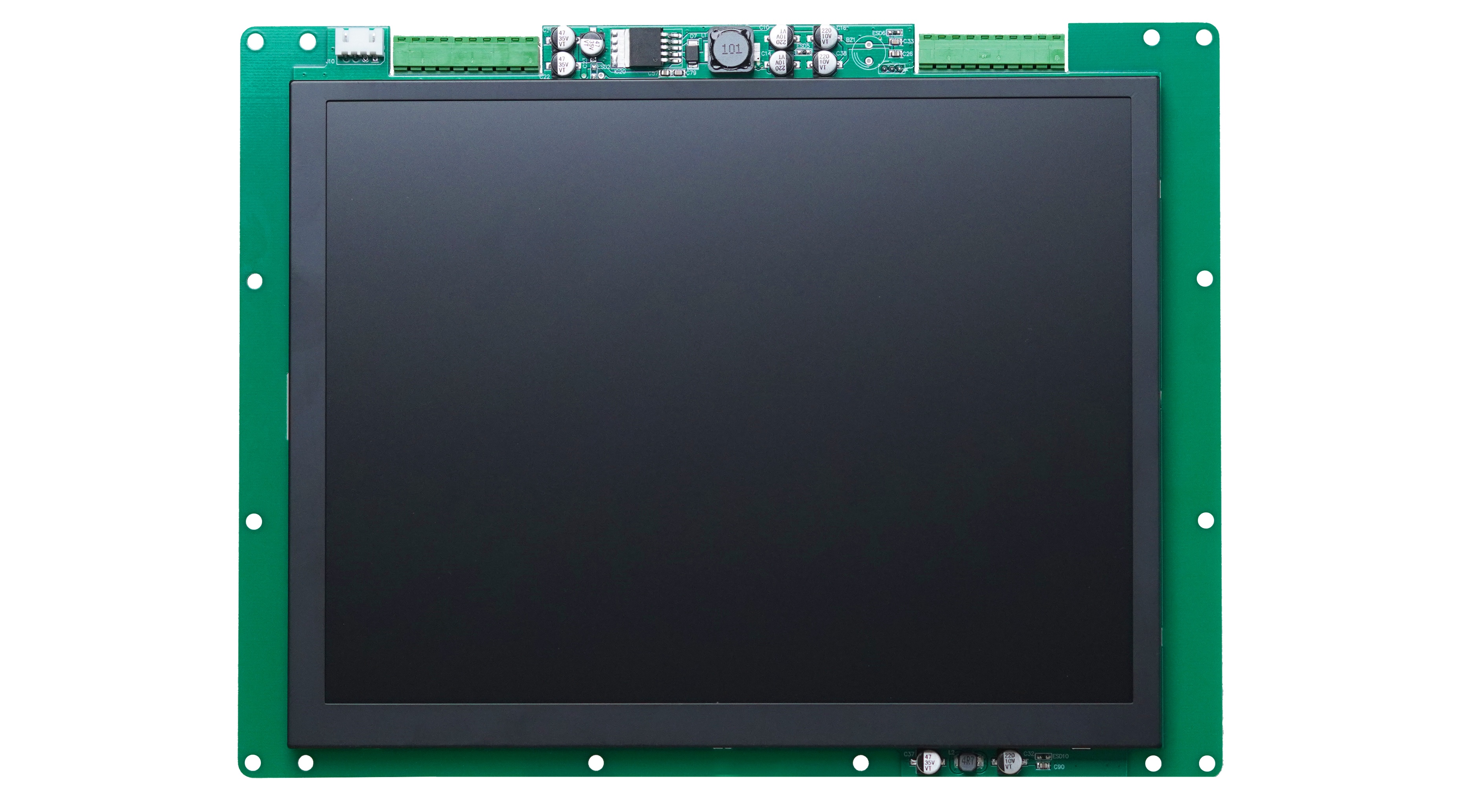

| LCD Type | TFT |
| Operating Voltage | 8~27V DC |
| Color Depth | 65,535 |
| Screen Diameter | 10.4” inch |
| View Area Dimensions | 210 x 158 mm [ 8.26 x 6.22 ] inch |
| Screen Resolution (px) | 800 x 600 |
| Dot Pitch | 0.26 x 0.26 (mm) |
| Panel Dimensions (L x W x D) | 260 x 200 20 mm [10.23 x 7.87 x 0.78] inch |
| Mounting Dimensions ( Ø, L x W ) | 4 x D4 252 x 192 mm |
| Operating Temperature | -10°C to 60°C |

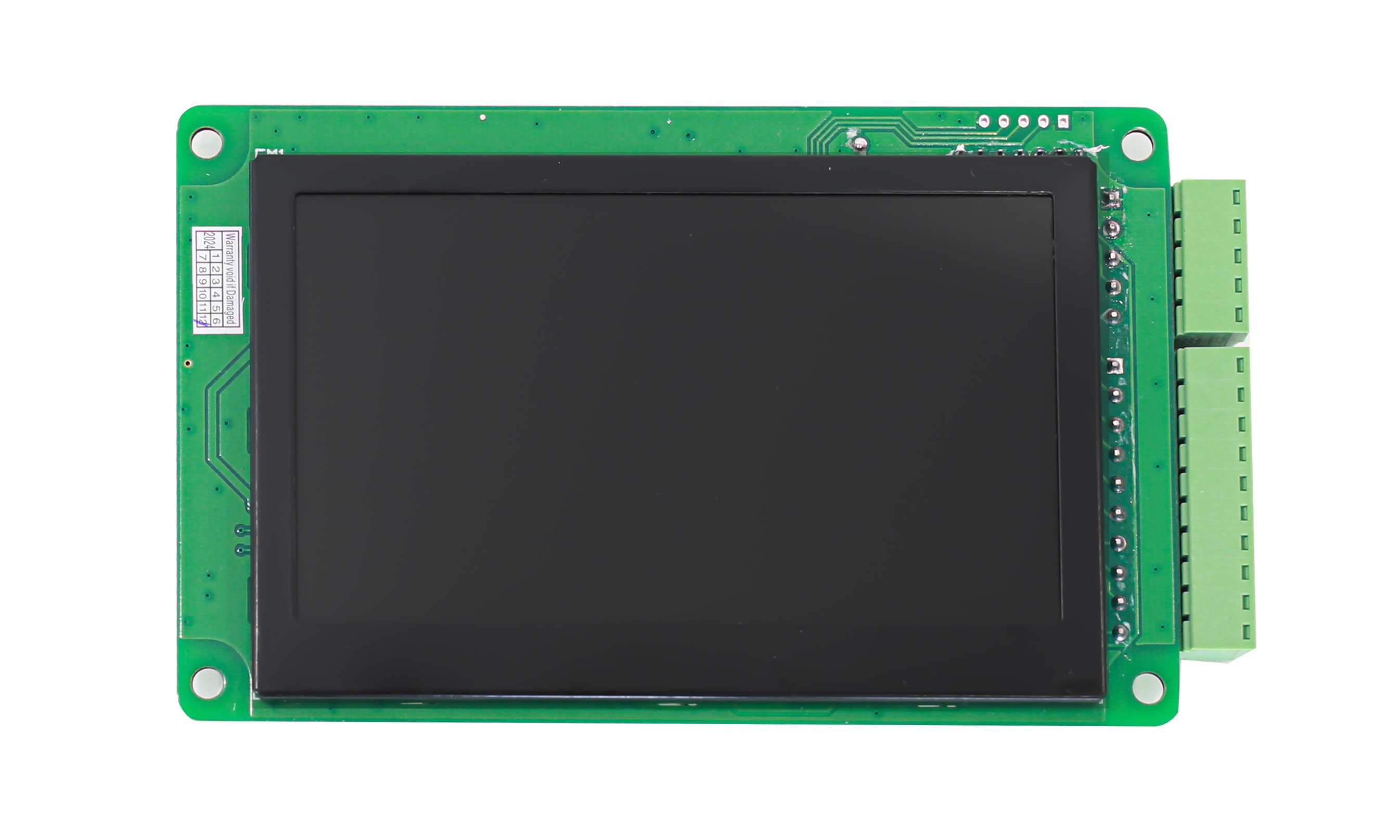

| LCD Type | TFT |
| Operating Voltage | 8~27V DC |
| Color Depth | 65,535 |
| Screen Diameter | 4.3” inch |
| View Area Dimensions | 96 x 54 mm |
| Screen Resolution (px) | 480 x 272 |
| Dot Pitch | 0.198 x 0.198 (mm) |
| Panel Dimensions (L x W x D) | 128 x 80 x 16 mm |
| Mounting Dimensions ( Ø, L x W ) | 4 x D4 120 x 70 mm |
| Operating Temperature | -20°C to 60°C |

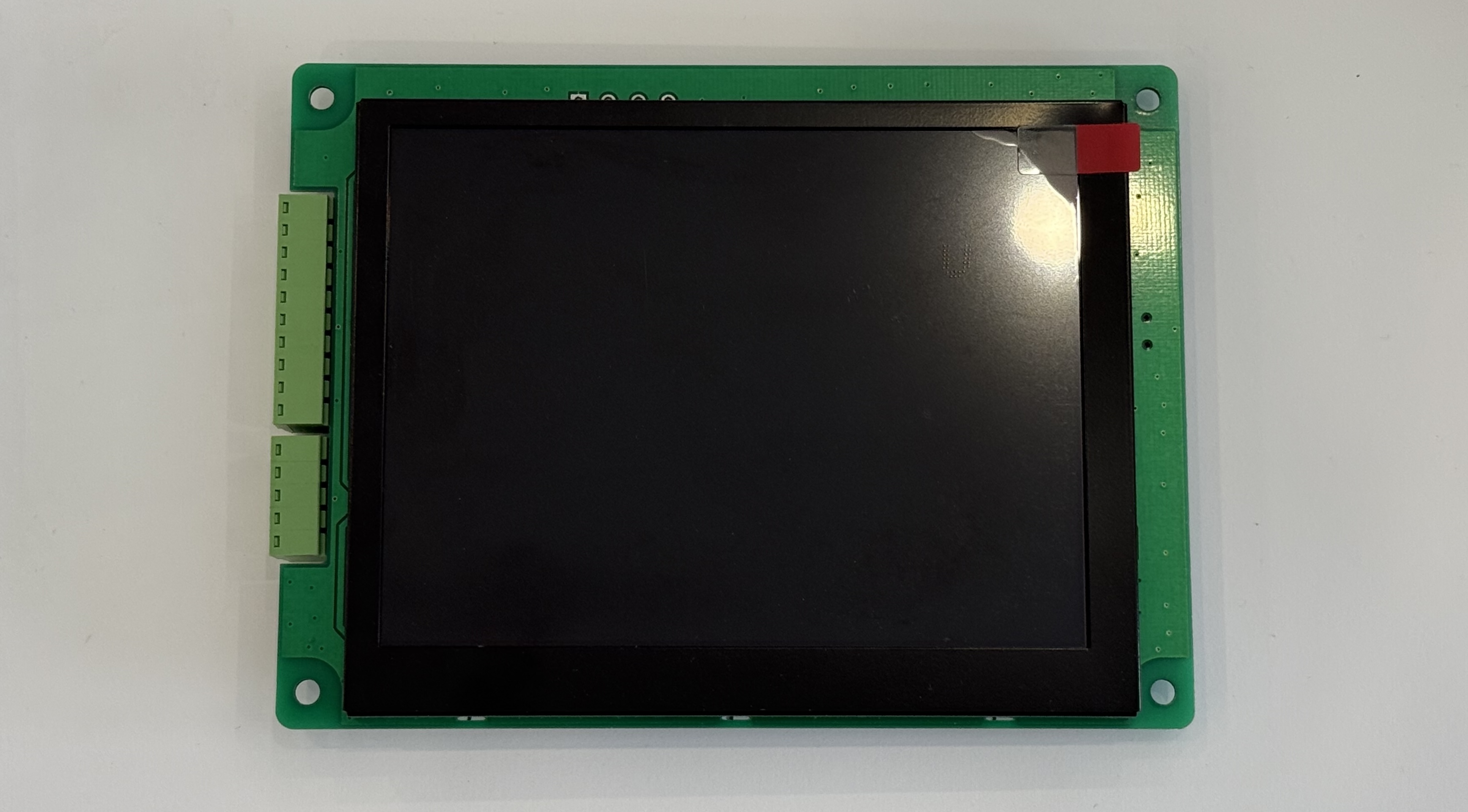

| LCD Type | TFT |
| Operating Voltage | 8~27V DC |
| Color Depth | 65,535 |
| Screen Diameter | 5.6” inch |
| View Area Dimensions | 112 x 84 mm |
| Screen Resolution (px) | 640 x 480 |
| Dot Pitch | 0.1764 x 0.1764 (mm) |
| Panel Dimensions (L x W x D) | 150 x 110 x 19 mm |
| Mounting Dimensions ( Ø, L x W ) | 4 x D4 140 x 100 mm |
| Operating Temperature | -20°C to 60°C |

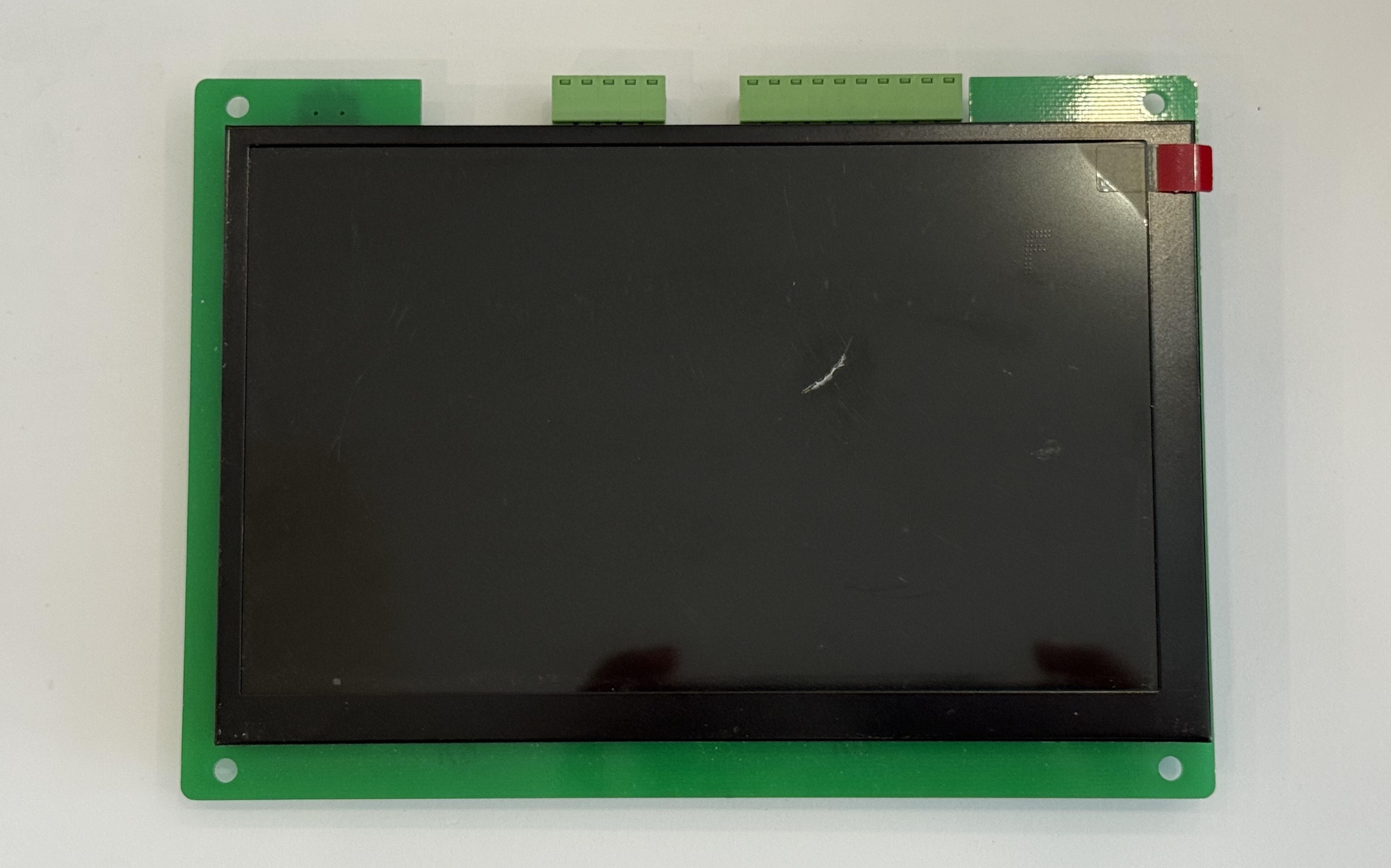

| LCD Type | TFT |
| Operating Voltage | 8~27V DC |
| Color Depth | 65,535 |
| Screen Diameter | 7” inch |
| View Area Dimensions | 152x 91 mm |
| Screen Resolution (px) | 800 x 480 |
| Dot Pitch | 0.19 x 0.19 (mm) |
| Panel Dimensions (L x W x D) | 175 x 125 x 20 mm |
| Mounting Dimensions ( Ø, L x W ) | 4 x D4 160 x 115 mm |
| Operating Temperature | -20°C to 60°C |
